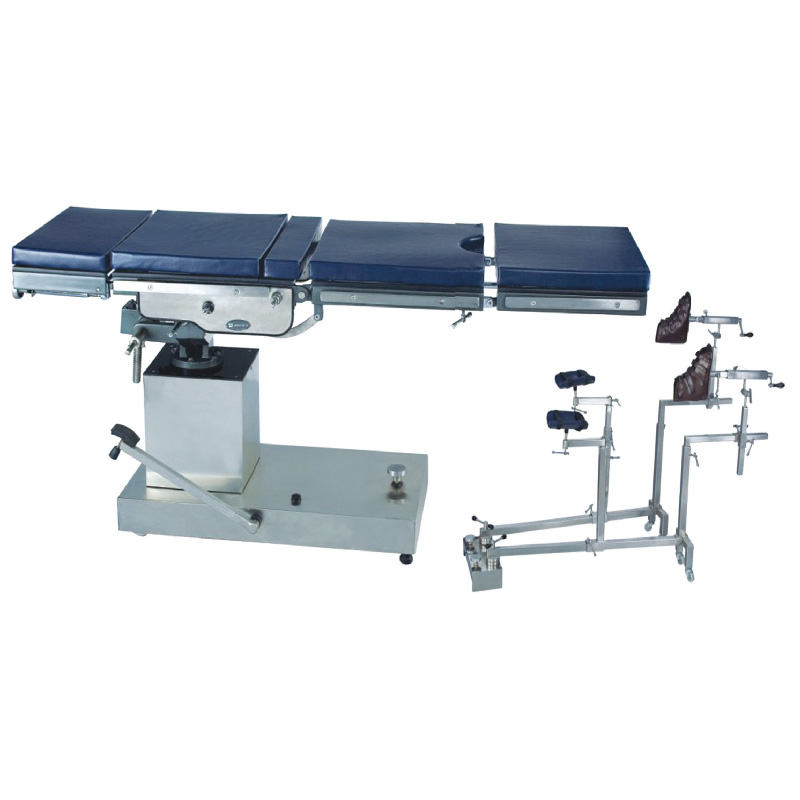

Description
The top segments are translucent for X-rays and enable taking pictures and monitonng a patient with a C-arm, The positions in five section table top are adjusted manually by mechanical drive. It’s safe and robust mechanism prevents breakdown during an operation.
Technical Constraints
Top Dimension: L 1905 X W 553 mm
Height Adjustment: 787 mm -1042 mm
Trendelenburg / Reverse: 30° / 25°
Lateral Tilt: 20° / 20°
Kidney Elevator: 150 mm
Back Rest (up / Down): 80° / 25°
Leg Rest (up / Down) : 15° / 90°
Head Rest (up / Down): 20° / 60°
Key Structure
- With regular human strength, up-down table position can be fixed by stepping foot pedal downward
- The base is eccentric for trouble-free C-ARM movements.
- Leg & Head section are interchangeable
- Base & Column covered with stainless steel.
