Description

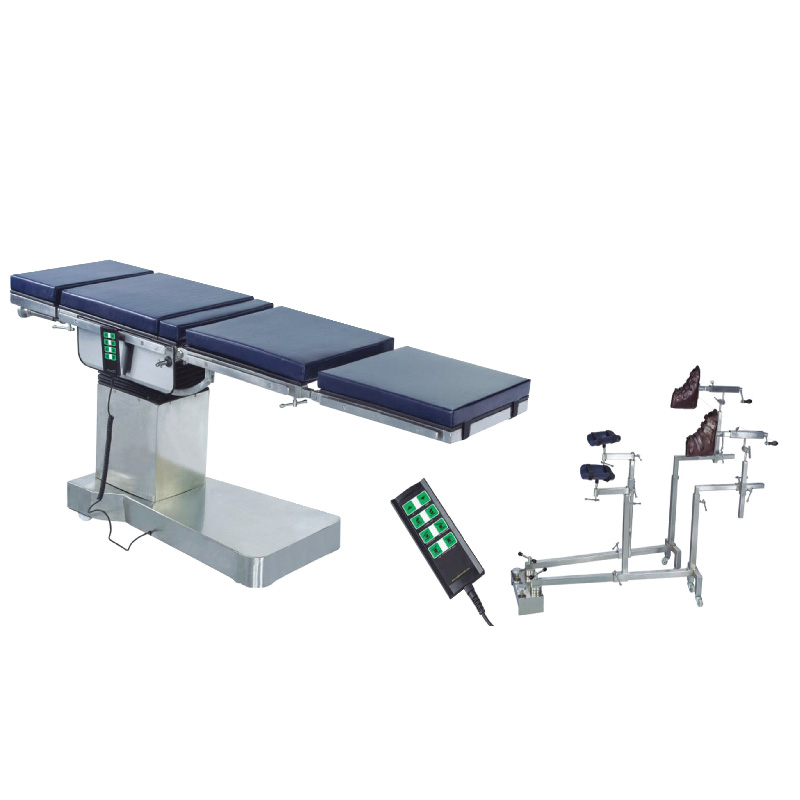

KI-101 is equipped with imported electric actuators for smooth & effortless working of the table. It ensures the actuators working in a constant speed without any noise & is designed to run even at low voltage to carry on the surgery.
Technical Constraints
Top Dimension: L 1930 XW 553 mm
Height Adiustment: 762 mm -1012 mm
Trandelenburg / Reverse: 30° / 25°
Lateral Tilt: 20° / 20°
Kidney Elevator : 150 mm
Back Rest (up / Down) : 80° / 25°
Leg Rest (up / Down) : 15° / 90°
Head Rest (up / Down): 20° / 60°
Power Supply: 24v Dc
Battery Backup (Optional): 2-3 Hours
Key Structure
- The table has been made from acid proof, stainless steel (the face of the table is easy to clean and immune to disinfection agents) Strong & rust free base of stainless steel is provided to make the working conditions pleasant for the doctors & nurses.
- Orthopedic attachment (hips and legs support) including the patient’s pelvis support and legs support enables the limbs strain performing. Design of the Orthopedic attachment & eccentric column provides monitoring of the limbs with the C-ARM during the operation.
- The various positions such as Up-Down movements, Trendelenburg Reverse Trendelenburg, Lateral Tilts, Flex- Reflex, Chair Position as realized by remote control.
- Leg section & head section are interchangeable.
