Description

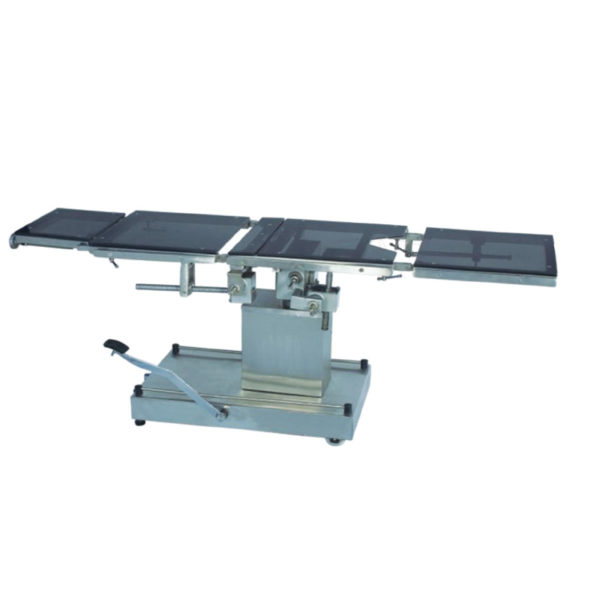

The top segments are translucent for X-rays and enable taking pictures and monitonng a patient with a C-arm, The positions in five section table top are adjusted manually by mechanical drive. It’s safe and robust mechanism prevents breakdown during an operation.
Technical Constraints
| Top Dimension: | L 1890x 510 mm |
| Height Adjustment | 760 mm-990 mm |
| Trendelenburg / Reverse: | 30° / 30° |
| Lateral Tilt: | 20° / 20° |
| Kidney Elevator: | 150mm |
| Back Rest (up / down): | 80° / 25° |
| Leg Rest (up / down):Head Rest (up / down): | 15° / 90°20° / 90° |
- The 5 section table top contains radiographic sheet of 12 mm and is equipped with assembled polyurethane 50 mm thick mattresses is easy to disassemble & cleanse.
- Strong & rust free base of stainless steel is provided to make the working conditions pleasant for the doctors & nurses.
- Head / Leg section are interchangeable.
- Auto floor locking device.
